New from VIAIR – the Dual 485C Onboard Air System. This air system delivers the vital air source for numerous pneumatic applications. See more details below.

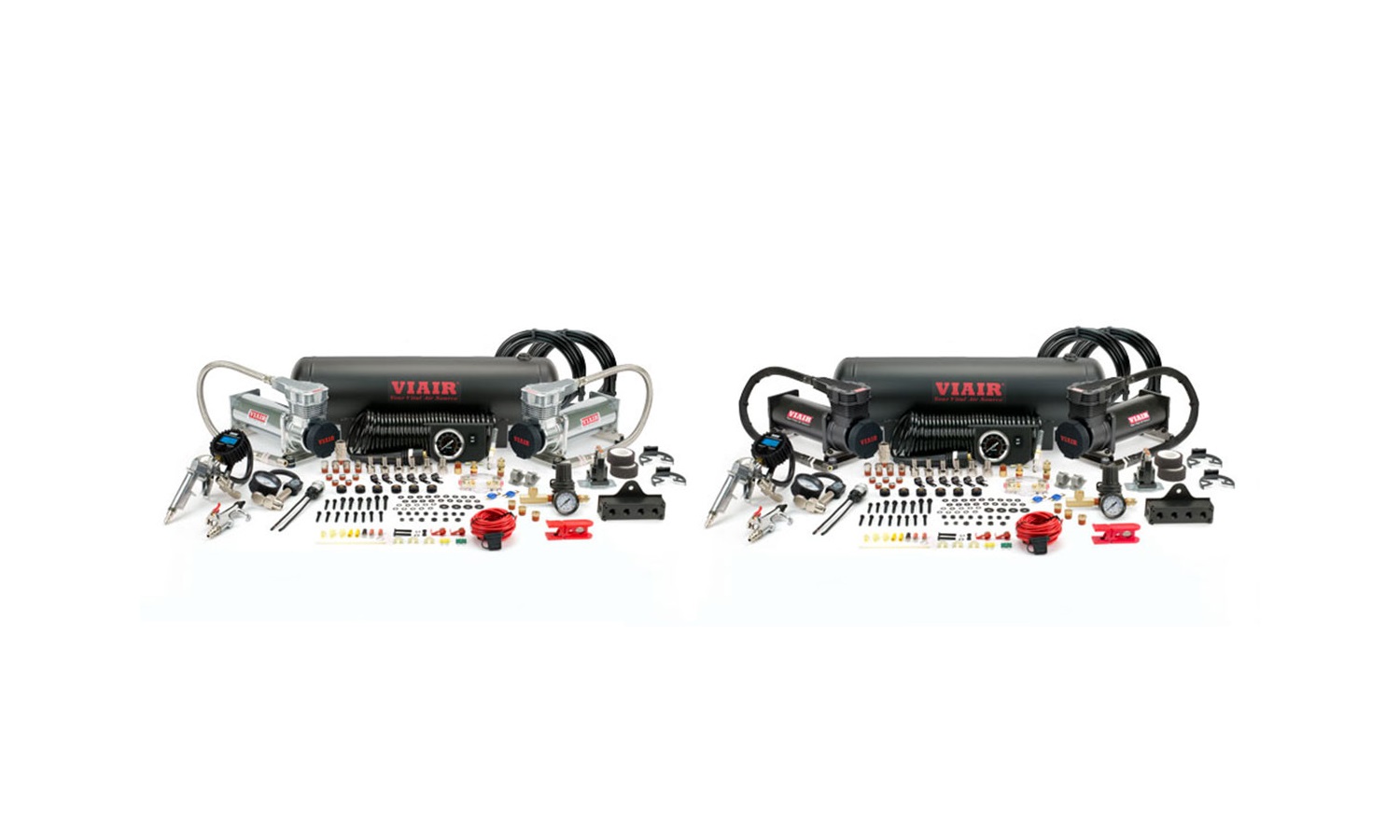

VIAIR’s Dual 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.
The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.
- 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
- (2) 485C (Platinum or Stealth Black) Compressors
- Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
- Digital Tire Inflation Gun (180PSI)
- 0-220 PSI Pressure Regulator
- Sealed Pressure Switch (165 PSI on, 200 PSI off)
- 1/4” Drain Cock
- Heavy Duty 80 Amp Relay
- Mini ANL Fuse Holder with 60 Amp Fuse
