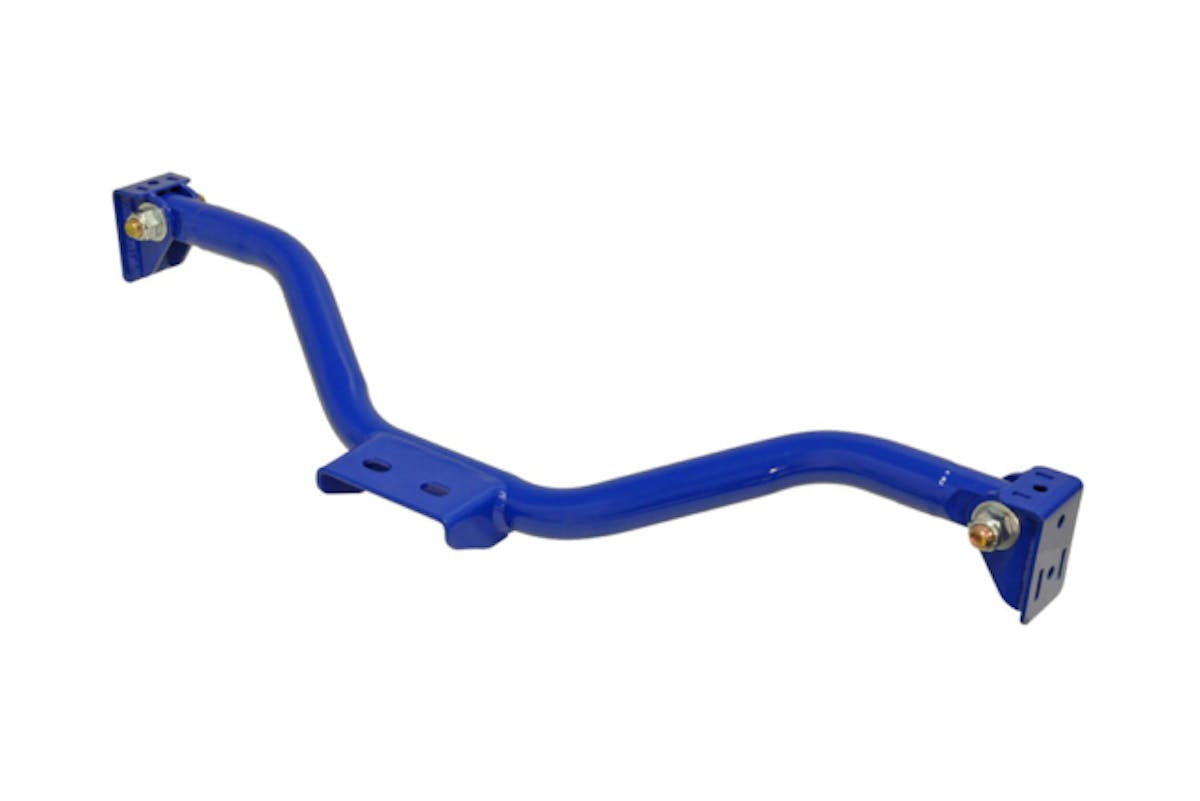

Total Control Products Offers Custom-Fit Transmission Crossmembers

New from Total Control Products – custom-fit transmission crossmembers. These units come in kits and can be adjusted to suit the user’s needs. The crossmembers have a maximum width of 29 inches, and come with weld-on frame brackets that can be arranged anywhere on the frame rails to accommodate multiple transmissions. See more details below.

Official Release:

Whether altering drivetrain position or swapping in a non-factory transmission, these weld-in transmission crossmembers from Total Control Products are the correct part for the job. The crossmembers have a maximum width of 29” and ship as unassembled weld-together kits, allowing ultimate flexibility in positioning the drivetrain. By rotating the 1-1/4″ diameter bent tube prior to installing the billet tube adapters, the drivetrain angle is adjustable with a maximum drop height of four inches. Additionally, the weld-on frame brackets can be positioned as needed along the length of the factory rail to easily accommodate transmissions of various lengths. The crossmember bracket accepts common GM-style urethane mounts for directly mounting to most commonly used transmissions. For 2005-up Ford Mustang transmission swaps, a simple adapter bracket is available to convert the three-hole vertical-plane bolt-pattern to the common two-bolt pattern.

Features:

• Maximum width of 29 inches
• Weld-on frame brackets can be placed anywhere on frame to accommodate any transmission
• Ship as unassembled weld-together kits to meet individual purposes
