Modern Handling for First-Gen Camaros (And Firebirds)

The 1967-1969 Camaro remains one of the most popular platforms in the performance aftermarket. But with modern tires, horsepower, and driving expectations, many owners quickly discover the limits of the original suspension.

The good news is that modern suspension systems can completely transform how these cars drive. The key is choosing the upgrade that matches your build goals. And that can be confusing to some. With this story, we are going to show you how to pick the right suspension setup for your first-gen Camaro (and its Firebird stablemate).

Some first-gen F-body owners want a comfortable street car that drives better than stock. Others are building show-level restomods with modern engineering. And some builders want the maximum performance possible from the platform.

This guide explains the suspension upgrades that best fit each type of build. We turned to the folks from QA1, Detroit Speed & Engineering and Speedtech to get their take on how to build the kind of rip-roaring first-gen F-body you’ve always wanted within your budget constraints, not to mention your comfort level (both literally and figuratively). Naturally, these companies have suspension goodies for numerous popular platforms, from first-gen Mustangs to Silverado trucks.

Why First-Gen Camaro Suspensions Need Upgrading

The original Camaro suspension was built for narrow bias ply tires and lower power levels. Once you introduce modern grip and horsepower, its shortcomings become noticeable.

• Limited camber gain

As the car leans in a corner, the factory front suspension struggles to keep the tire flat on the pavement. The contact patch shrinks under load, which contributes to understeer and limits front-end grip.

• Leaf spring rear suspension compromises

Leaf springs handle multiple jobs at once. They locate the axle, support the vehicle’s weight, and control torque from acceleration and braking. That multi-purpose design works for street cruising, but can lead to inconsistent axle control and reduced traction during hard driving.

• Chassis and subframe flex

The first-gen Camaro uses a front subframe attached to a unibody structure. Under performance driving loads, this structure can flex. When that happens, suspension geometry changes dynamically, reducing steering precision and consistency.

Modern suspension systems address these limitations by improving suspension geometry, strengthening the chassis structure, and introducing adjustability that allows the car to be tuned for both performance and comfort.

The Three Best Suspension Paths For A ’67-’69 Camaro

Instead of ranking suspension systems as good, better, and best, it’s more helpful to match the solution to the builder and how the car is intended to be used. Most Camaro projects fall into three categories:

• Comfortable handling upgrades with bolt-in installation

Many Camaro owners want a car that drives confidently on real roads without becoming harsh or difficult to build. This type of build prioritizes comfortable ride quality, predictable installation, adjustable ride height, and an easy, do-it-yourself at home upgrade.

For this builder profile, a complete suspension system from QA1 is a smart suspension upgrade you can make to your first-gen Camaro.

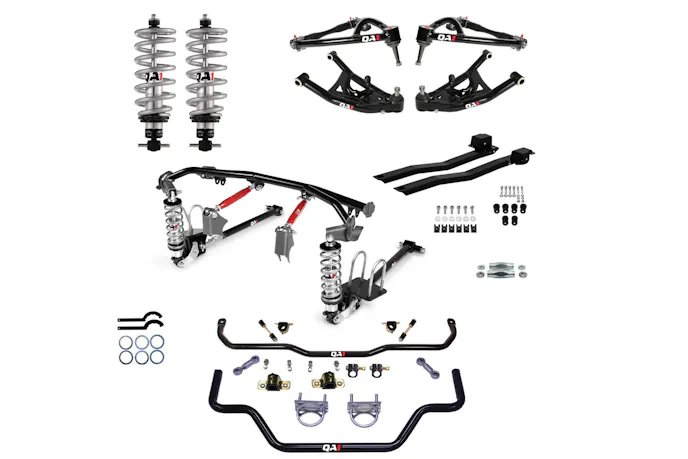

QA1 suspension kits are designed as complete front-and-rear solutions rather than individual component upgrades. By replacing the factory suspension with modern coilovers, tubular control arms, and a four-link rear suspension, the system improves both geometry and drivability.

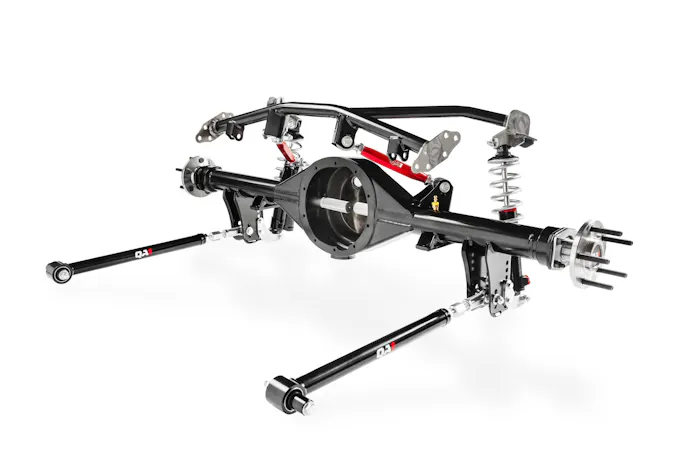

The benefits of QA1’s four-link suspension kit with its 9-inch rearend system include adjustable ride height to dial in the perfect stance, adjustable shocks to fine-tune ride comfort and performance, increased rear wheel and tire clearance, plus it’s a fairly easy DIY bolt-in installation.

The result is a Camaro that feels noticeably more stable and responsive, while still remaining comfortable for long drives or events like Power Tour. For enthusiasts who want modern handling without major fabrication, this type of system delivers a strong balance of performance and installation simplicity.

Best Suspension For High-End Restomod Builds

Some 1967-1969 F-body builds aim for something beyond bolt-ons. The objective is a next-level result where the car feels engineered from the ground up, with modern handling, high-end craftsmanship, and suspension systems that work seamlessly with the vehicle’s structure.

Common priorities for this type of build include show-level craftsmanship and finish, refined ride quality with modern handling performance, and integrated suspension systems designed as complete engineering solutions

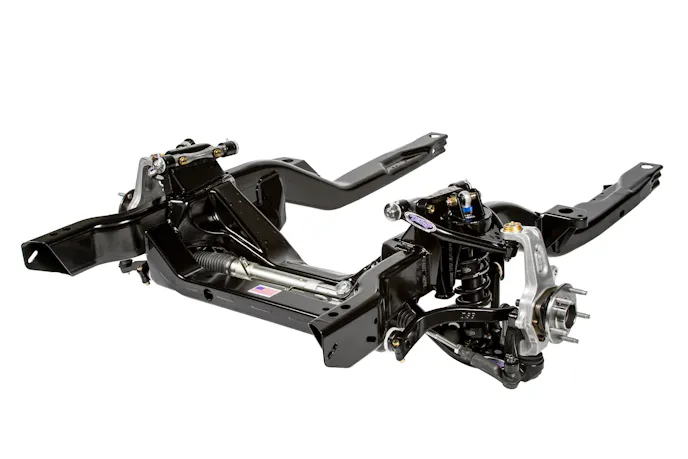

For this type of build, solutions from Detroit Speed are widely used in high-end Camaro restomods. One of the most well-known upgrades for a first-gen Camaro is the Detroit Speed hydroformed front subframe. Instead of modifying the factory front clip, this system replaces it entirely with a newly engineered structure designed around modern suspension geometry.

Hydroforming allows framerails to be formed from a single piece of steel using high-pressure fluid. This manufacturing process creates rails that are stronger, more rigid, and more dimensionally consistent than traditional welded assemblies.

The result is a front suspension foundation that improves steering precision, strengthens the chassis to allow the suspension to perform as designed, maintains more consistent suspension alignment, and integrates cleanly with the vehicle structure

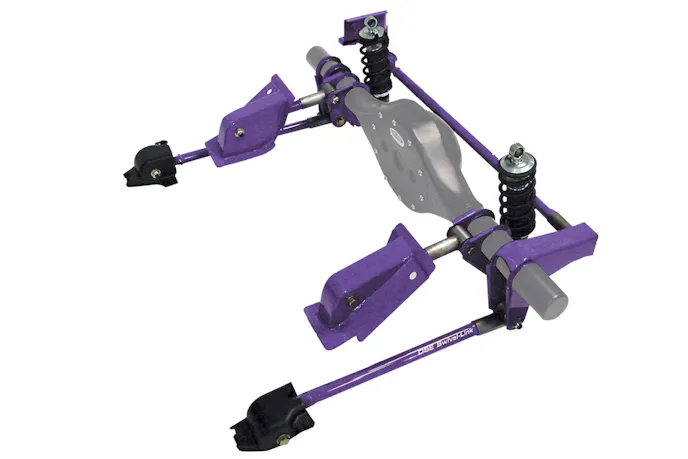

QuadraLink Rear Suspension

On the rear of the car, Detroit Speed’s QuadraLink system replaces the factory leaf springs with a four-link suspension designed to improve axle control, traction, and cornering stability.

Unlike many racing-style rear suspension systems that rely on metal rod ends, QuadraLink uses specialized joints and high-durometer rubber bushings designed to allow articulation while minimizing noise and harshness. This makes it particularly well suited for high-end street-driven restomod builds.

Installation requires fabrication and welding, but the result is a suspension system that delivers modern handling performance while retaining the refinement expected from a premium Camaro build. Pairing the QuadraLink with Detroit Speed mini-tubs opens the door for significantly wider rear tires, creating a setup that improves both traction and stance while maintaining the clean integration high-end restomod builds are known for.

Best Suspension For Pro Touring & Track

Some builders want their Camaro to deliver serious performance without losing the enjoyment of driving it on real roads. These projects aim for modern sports-car handling while still being comfortable enough for road trips, cruising, and weekend drives.

These builds focus on:

• Maximum tire width
• Track capability
• Advanced suspension geometry
• Increased chassis rigidity
• Modern steering response and driver feel

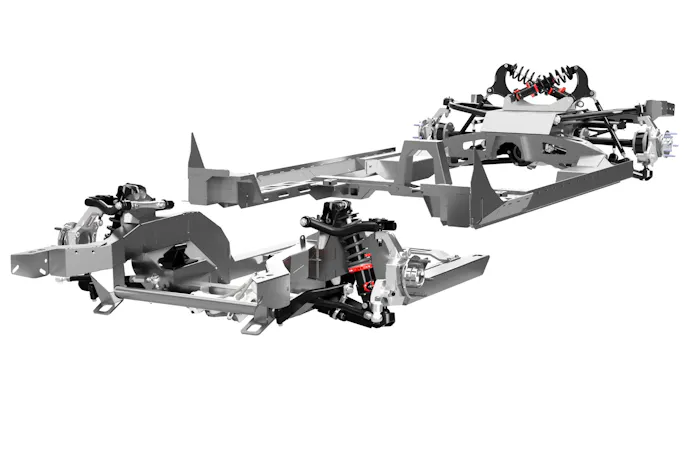

For this type of build, Speedtech Performance Extreme Chassis systems are designed to push the platform further.

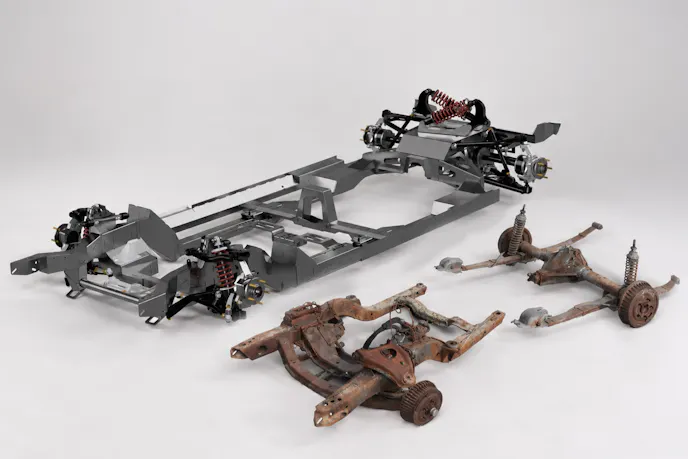

Rather than upgrading portions of the factory chassis, Speedtech’s Extreme Chassis replaces the foundation of the vehicle with a fully engineered performance chassis system designed around modern suspension geometry, wider tire fitment, and significantly increased structural rigidity.

The result is a Camaro that feels far more precise, planted, and confidence-inspiring under aggressive driving.

Speedtech Extreme Front Suspension

At the front of the chassis, Speedtech’s Extreme front subframe is designed to maximize steering angle, front-end grip, and overall driver confidence.

The system uses modern suspension geometry engineered to improve camber control, steering response, and stability under hard cornering. Compared to the limitations of the factory subframe and suspension design, the Extreme front suspension provides a far more capable foundation for aggressive street driving, autocross, and track-focused builds.

Speedtech Performance ExtReme Front SuspensionKey advantages include:

• Advanced front suspension geometry
• Improved steering precision and driver feedback
• Reduced chassis flex for more consistent suspension performance
• Extremely wide front wheel and tire capability with 30-degrees of steering
• Adjustable suspension settings for ride height and handling balance

With the right wheel and tire package, many Speedtech-equipped Camaros can support rear tire widths in the 315–335 range, with some combinations allowing even larger fitment depending on wheel offset, mini tubs, and ride height.

Speedtech Rear Suspension Options

One of the advantages of the Speedtech Performance Extreme Chassis is the ability to tailor the rear suspension around the intended use of the build.

While the front suspension geometry and chassis structure create the foundation for steering response and handling precision, the rear suspension plays a major role in how the car puts power to the ground, responds in transitions, and feels on real roads.

Speedtech offers both torque arm rear suspension and Independent Rear Suspension (IRS) configurations for first-gen Camaro builds, allowing builders to prioritize traction, refinement, track capability, or long-distance drivability depending on the direction of the project.

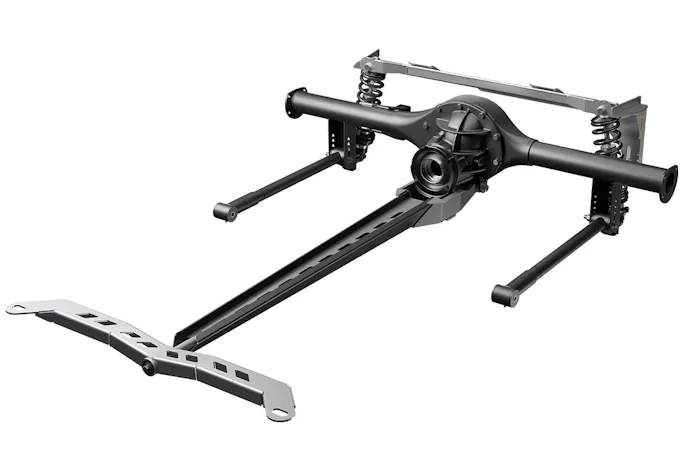

The torque arm rear suspension remains one of the most popular choices for aggressive street cars and pro-touring Camaros.

Unlike factory leaf springs that must simultaneously support vehicle weight, locate the axle, and manage drivetrain forces, a torque arm system separates those responsibilities into dedicated suspension components. This allows the rear suspension to control acceleration, braking, and cornering forces more consistently. The result is a Camaro that feels significantly more planted and predictable under power.

The benefits of a torque arm suspension include:

• Improved rear traction during acceleration
• Reduced wheel hop compared to factory leaf springs
• More consistent handling during cornering and braking
• Excellent durability for high-horsepower street and pro-touring builds
• Comfortable ride quality for real-world street driving

Torque arm systems continue to be a favorite in the pro-touring world because they balance handling performance, drivability, packaging, and durability while maintaining the strength and simplicity of a solid rear axle.

For builders looking to maximize rear wheel and tire fitment, Detroit Speed mini-tubs are a popular addition to torque arm-equipped Camaros. Mini-tubs create additional inner wheelhouse clearance, allowing significantly wider rear tire packages that improve traction, stance, and overall pro-touring.

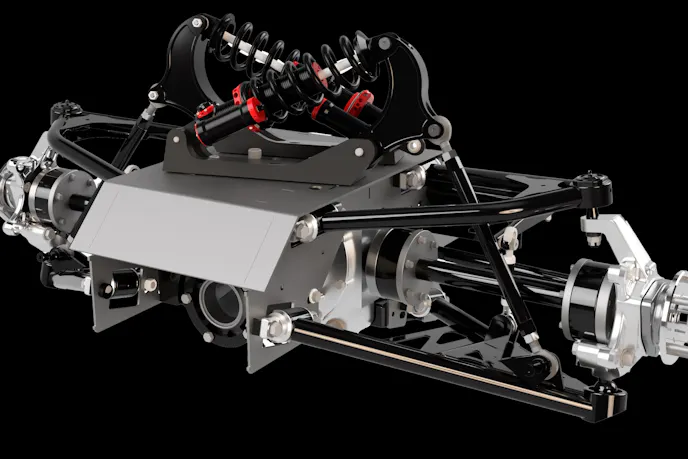

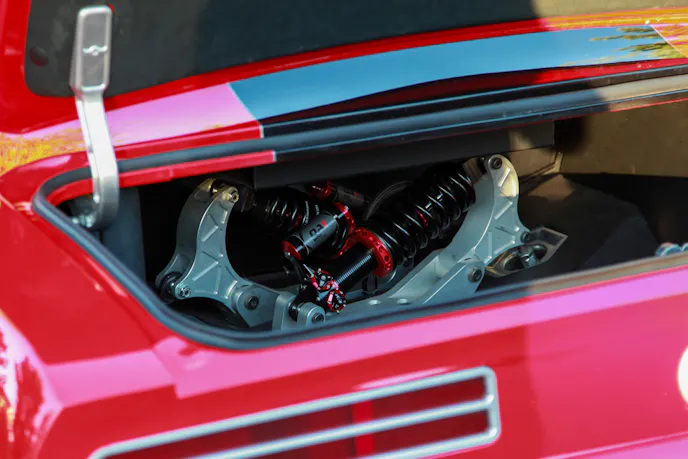

For builders looking to push a first-gen Camaro even further, Speedtech also offers Independent Rear Suspension (IRS) configurations.

Unlike a solid rear axle where both wheels are connected together, IRS allows each rear wheel to react independently to road conditions and suspension movement. This improves tire contact during cornering and helps the car remain more composed over uneven pavement.

The result is a driving experience that feels more refined, more stable at speed, and more comparable to a modern high-performance sports car.

Speedtech Performance Independent Rear Suspension (IRS)

Advantages of IRS include:

• Improved ride quality over rough roads
• Better rear suspension compliance during cornering
• Enhanced stability and control at higher speeds
• Modern sports-car driving feel and refinement
• Reduced unsprung weight compared to many solid axle combinations

IRS systems are commonly selected for advanced pro-touring and high-end restomod builds where builders want maximum handling refinement without sacrificing performance capability.

These systems require more fabrication and structural integration than bolt-on upgrades, but they deliver the highest overall performance potential.

For builders focused on autocross, track days, or aggressive pro-touring driving, this approach unlocks performance the factory chassis simply cannot achieve.

So there you have it: Three very different approaches to improving the handling of your first-gen Camaro, from mild-to beyond wild.
