If you’re cruising around in a ’67 through ’72 C10 truck, here’s something that will make you take notice. Art Morrison Enterprises (AME) has just released a new GT Sport chassis for these truck owners. The 1967-72 Chevy C10 pickup to the ever-growing roster of vehicles that have received a bolt-in GT Sport chassis option. We’re told AME’s engineering team employed 3D digital scanning technology as well as other computer applications to ensure a perfect fit and develop an integrated chassis package that improves handling, ride, and stance.

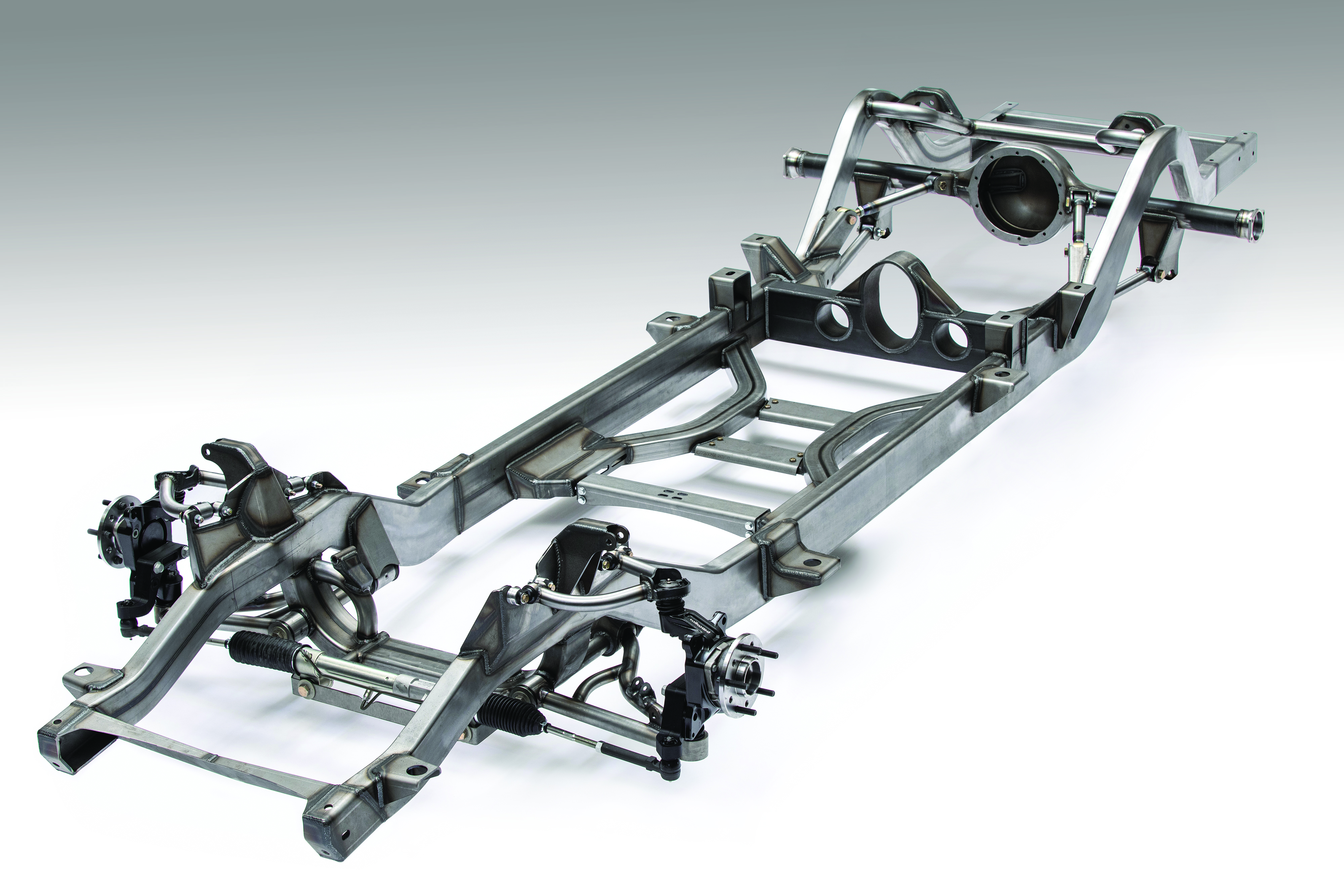

The new chassis is made with rigid 2 x 6 main framerails of .180-inch thick material. The chassis uses FEA-optimized braces to ensure a stiff platform and it also features 3-inch passageways for exhaust routing. This keeps the pipes up and out of sight. This new chassis is designed to provide 5- to 6-inches of ground clearance with nothing protruding below. If fact, the bottom of the oil pan is flush with the frame.
AME’s GT Sport chassis for the C10 comes with a 9-inch rearend supported by a triangulated four-bar suspension and coilover shocks. It can be ordered with a multi-link I.R.S. or an air spring suspension. Upfront, you’ll find Wilwood forged-aluminum spindles, TIG-welded tubular-steel control arms, and an adjustable sway bar. A new rack-and-pinion steering is coupled with a billet aluminum steering arm and provides near-zero bump steer. A 62 ½-inch front tread width facilitates the proper scrub geometry while allowing for the use of dished wheels.
If you’re ready to take your early C10 to the next level of handling prowess, for additional info go to www.ArtMorrison.com.
