Sometimes a quick fix is necessary to complete a project. A friend’s LS engine swap required cutting the exhaust lead-down pipes from the welded exhaust system in order to fit the new lead-down pipe to the new engine. After we cut the exhaust pipe on the driver’s side with a Sawz-All to realign the pipes, we now faced a new problem: How to join the two pipes together quickly.

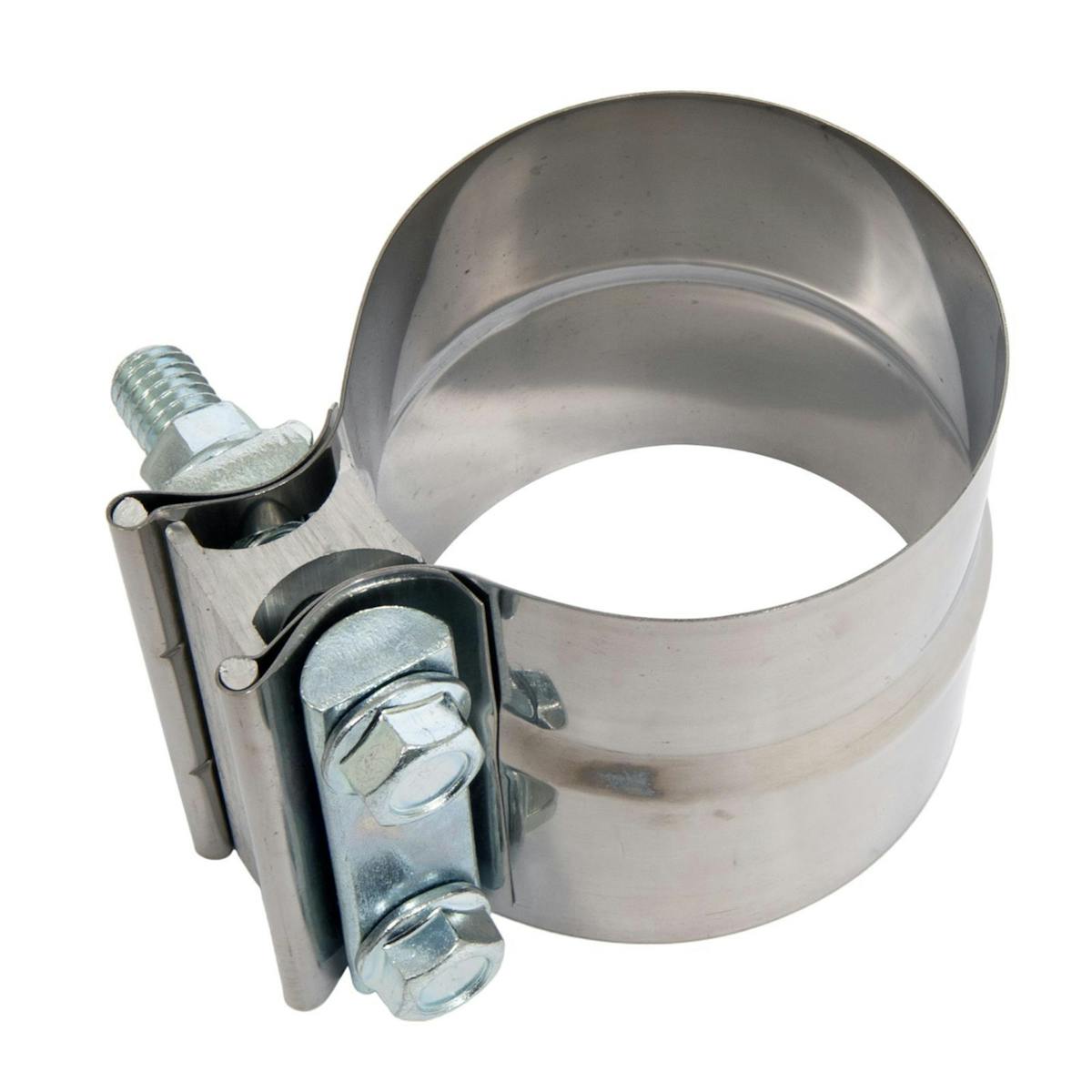

We did not have access to a welder, so we used a simple Walker 2½-inch butt joint clamp. Exhaust pipe is measured and spec’d by its outside diameters. The clamp we chose will work to join 2½-inch pipes of the same size. There are also lap-joint clamps designed to join two pipes together where the smaller pipe is slipped inside the larger one. We’ve listed both style clamps in the accompanying chart.

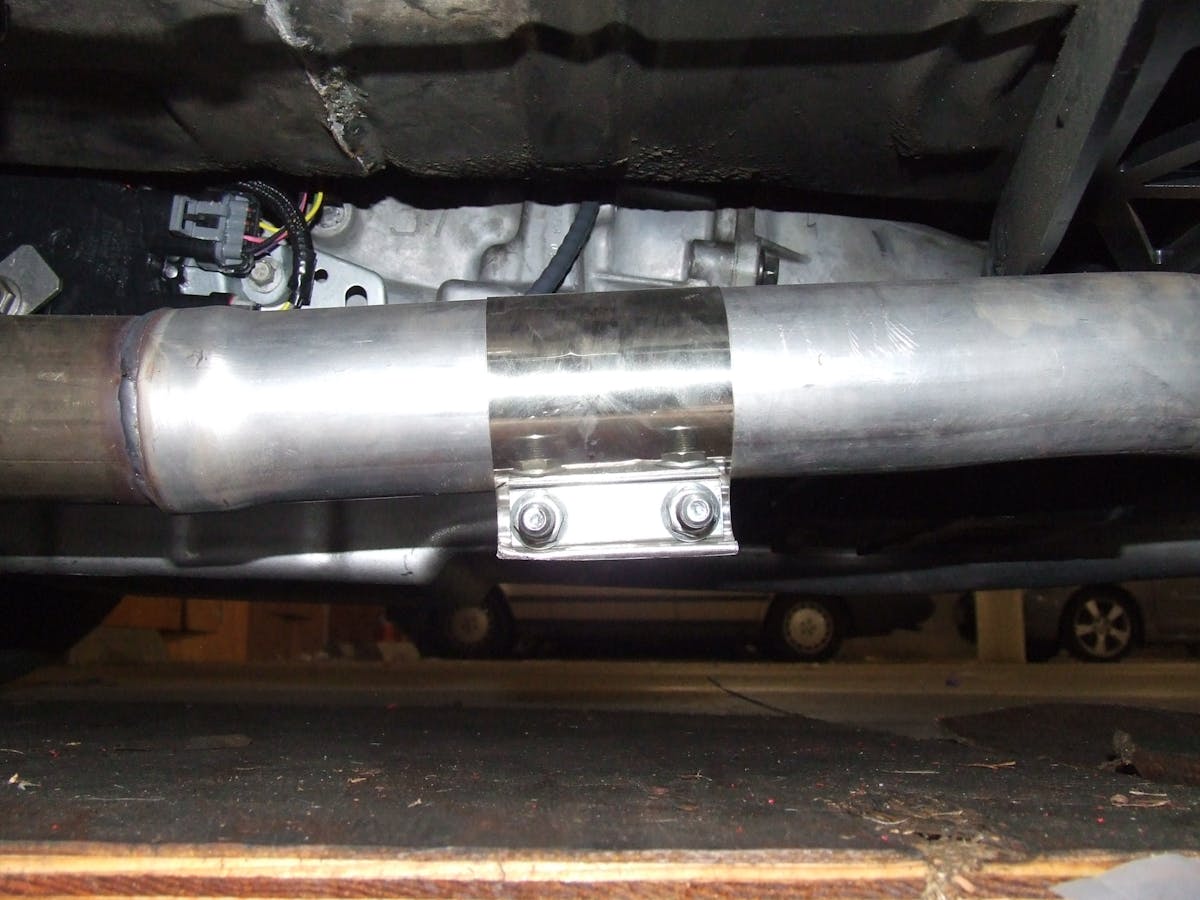

We pulled the pipes together as close as we could and used the band clamp to bring them together. We really didn’t expect the clamp to seal the exhaust, but we thought we could at least create an 80 percent connection that would allow us to drive the Chevelle to a muffler shop to have the two pipes permanently welded together. Amazingly, that telltale ticking exhaust leak that we expected never materialized.
Some may be tempted to turn this into something we like to call “Temporary Repairs That Become Permanent.” But because we’re using a pair of oxygen sensors located only slightly upstream of this connection, it’s best to do the job correctly and weld this connection together to ensure the O2 sensors will return accurate measurements.
Part Number / Source | |
Walker 2½” butt joint band clamp, polished | 33240 Summit Racing |
Walker 3” butt joint band clamp, polished | 33278 Summit Racing |
Walker 2¼ ” butt joint band clamp, polished | 33229 Summit Racing |
Walker 2 ½” butt joint band clamp, HD | 36354 Summit Racing |
Walker 3” butt joint band clamp, HD | 36352 Summit Racing |
Walker 3½” butt joint band clamp, HD | 36533 Summit Racing |
Walker 2 ¼“ lap-joint band clamp | 33231 Summit Racing |
Walker 2 ½” lap-joint band clamp | 33226 Summit Racing |
Walker 3” lap-joint band clamp | 33272 Summit Racing |
Walker 3 ½” lap-joint band clamp | 33273 Summit Racing |
2½” butt joint band clamp | 683250 Summit Racing |
2¼ ” butt joint band clamp | 683225 Summit Racing |
3” butt joint band clamp | 683300 Summit Racing |
2¼“ lap-joint band clamp | 681225 Summit Racing |
2½“ lap-joint band clamp | 681250 Summit Racing |
3“ lap-joint band clamp | 681300 Summit Racing |
